iSONIC ECO CUBE MTC
Ultrasonic tube welding system (welding tool)

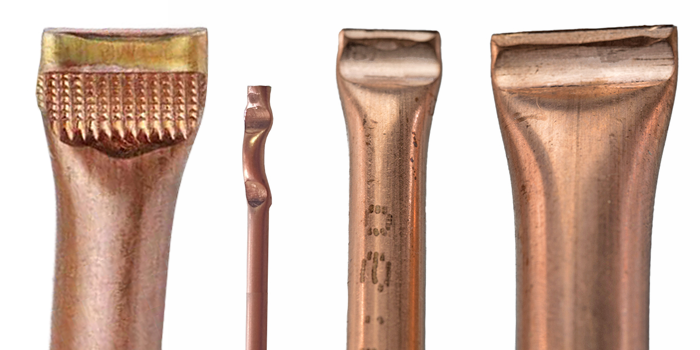

Hermetically sealing & cutting copper and aluminium tubes in a single step

The iSONIC ECO CUBE MTC seals and cuts refrigerant-carrying tubes quickly, reliably and without additional soldering or joining materials. Ultrasonic technology enables a hermetically tight seal with low heat input. The iSONIC ECO CUBE MTC is a compact solution particularly suited to the manufacturing and processing of refrigerant circuits in refrigerators, air-conditioning systems and heat pumps.



An efficient alternative to soldering

Conventional soldering processes join tubes using high temperatures. This requires additional energy and introduces heat into the component and its surrounding area. In contrast, the iSONIC ECO CUBE MTC uses mechanical ultrasonic vibrations. The joint is created without an open flame and without additional solder.

The result is a fast, clean and energy-efficient process for hermetically sealing tubes.

Designed for modern refrigerants

The iSONIC ECO CUBE MTC is designed for applications using flammable HC and A2L refrigerants. This makes the technology particularly suitable for modern refrigeration and heat pump systems, where the safe handling of flammable refrigerants is an important consideration.

Advantages

• Hermetically tight: Reliable sealing of refrigerant-carrying tubes
• 2-in-1 process: Sealing and cutting in a single operation
• Low heat input: No open flame and no extensive heat exposure of the component
• Energy-efficient: Low energy consumption compared with thermal joining processes
• No additional materials: No solder or adhesive required
• Suitable for flammable refrigerants: Designed for HC and A2L refrigerants
• Flexible: For tube diameters from 2 to 10 mm
• For wall thicknesses up to 1.0 mm
• Fast tool change
• Easy calibration
• Low maintenance costs

Applications in refrigeration and air-conditioning technology

• Refrigerators and refrigeration appliances
• Air-conditioning systems
• Heat pumps
• Refrigerant circuits
• Refrigerant charging tubes
• Capillary tubes

Processes

• Ultrasonic welding
• Ultrasonic welding and cutting
